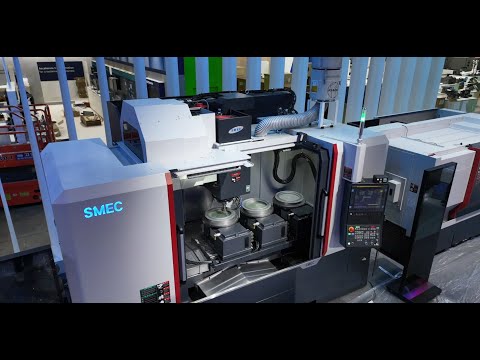

[5-Axis MCT] MVF 5000 New Model Launching_SMEC Machine Tools

Date: 2021-09-21

*** spec ***
MCF 5000
5-AXIS Machining Center
1. Controller
- F-0iMF+/F-31iB5
2. Spindle
- STD (rpm) : 12,000
- OPT (rpm) : 15,000/18,000
3. Travel
- X-axis (mm) : 650(400+250)
- Y-axis (mm) : 520
- Z-axis (mm) : 475
- B-axis (deg) : -110~+45
- C-axis (deg) : 360
4. Rapid traverse rate
- X/Y/Z-axis (mm) : 40
- B-axis (rpm) : 16
- C-axis (rpm) : 25
5. Table Size
- STD (mm) : 500
- OPT (mm) : 600
6. ATC
- STD (ea) : 30
- OPT (ea) : 40/60
- Tool Shank : BT40/BBT40/CAT40

SMEC Machine Tools LM Guide Y-Axis [NS 2100SY] Teaser Y-axis Turning Center

Date: 2021-09-03

SMEC Machine Tools LM Guide Y-Axis [NS 2100SY] Teaser Y-axis Turning Center

SMEC Machine Tools 5-axis MCT [MVF 5000] Teaser

Date: 2021-08-12

SMEC Machine Tools 5-axis MCT [MVF 5000] Teaser

SMEC Machine Tools_NS 2100SY (Machine Tools, Turning Center, CNC Lathe, Y-axis)

Date: 2021-07-05

*** spec ***
NS 2100SY
Main Chuck 6~8" Sub Chuck 5" Y-axis Turning Center
LM Guide way
Swing over bed : Ø820
Swing over cross slide : Ø540
Max. Turning Dia : Ø378
Max. Machining Length : 490mm
Max. Spindle : Main Chuck - 6.000 rpm
Sub Chuck - 4,500 rpm
Main Motor(Cont./Max) : 11/18.5 kW
Sub Motor(Cont./Max) : 7.5/11 kW
Travel(X/Y/Z/ZB) : 205/110(±55)/590/590 mm
Rapid traverse rate(X/Y/Z/ZB) : 30/10/36/36 m/min


*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

SMEC KOREA www.esmec.com
SMEC AMERICA www.esmecamerica.com
SMEC EUROPE www.esmec.com
SMEC VIETNAM www.smecvina.com.vn

SMEC Machine Tools_PL 800GB (Machine Tools, Grinding, Turning Center, CNC Lathe)

Date: 2021-05-11

*** spec ***
PL 800GB
12" Grinding Turning Center
X-axis : Box guide way, z-axis roller LM Guide way
Swing over bed 800mm, Swing over cross slide 650mm
Max. Spindle : 4,500 rpm
Motor(Cont./Max) : 11/15 kW
Travel(X/Z) : 400/400 mm
Rapid traverse rate(X/Z) : 16/24 m/min
Grinding Spindle
Belt type
- Max. speed : 6,000 rpm
- Motor (cont/max) : 3.7 kW
Built-in type
- Max. speed : 6,000 rpm
- Motor (cont/max) : 3.5 kW

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

SMEC KOREA www.esmec.com
SMEC AMERICA www.esmecamerica.com
SMEC EUROPE www.esmec.com
SMEC VIETNAM www.smecvina.com.vn

SMEC Machine Tools_Rotor Test Cutting SL 2000SY(Y-axis Turning Center)

Date: 2021-04-30

Y-axis Turning Center SL 2000SY Series

▶ Test Cutting
- ITEM : Rotor
#OP 10 : I.D/O/D cutting
#OP 20 : Drill/Milling cutting

▶ SPEC. FOR SL 2000SY
- Main chuck size 6"/8"
- Sub chuck size 6"
- Swing over bed 650mm
- Swing over cross slide 540mm
- Max turning diameter 395mm
- Max machining length 490mm
- Max spindle speed 6,000/4,500rpm
- Spindle nose A2-5/A2-6"
- Spindle motor 11/18.5kW
- X/Y/Z/B axis travel 235/105/580/580mm
- X/Y/Z/B axis rapid travers rate 24/10/30/24m/min
- Number of tool stations 12[24]ea
- Turning tool shank size 25mm
- Turret index time 0.15sec

▶ Structure of Line
- Machine of Line
ᆞSL 2000SY 6ea
- Option
ᆞSpecial Main Chuck
ᆞSpecial Sub Chuck
ᆞSpindle Oil cooler
ᆞAuto Door
ᆞAir Blow

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

SMEC Machine Tools_Oil pump cover Test Cutting PL 250/300V(Vertical Turning Center)

Date: 2021-04-20

Vertical Turning Center PL 250/300V Series

▶ Test Cutting
- ITEM : Oil Pump Cover
- Material : I.D BRASS, O.D SUJ2
- Cutting : I.D FIN TURN x2 , O.D FIN TURN x1
Work Probe x1

▶ SPEC. FOR PL 250/300V
- Chuck size 8/10"
- Swing over bed 550mm
- Swing over cross slide 400mm
- Max turning diameter 400mm
- Max machining length 245mm
- Max spindle speed 3,500rpm
- Spindle nose A2-6/A2-8"
- Spindle motor 15/18.5kW
- X-axis travel 230mm
- Z-axis travel 280mm
- X-axis rapid travers rate 24m/min
- Z-axis rapid travers rate 24m/min
- Number of tool stations 12ea
- Turning tool shank size 25mm
- Turret index time 0.15sec

▶ Structure of Line
- Machine of Line
ᆞPL 300V 4ea
- Option
ᆞ Special Chuck
ᆞ Built-in Spindle
ᆞ Spindle Oil cooler
ᆞ Coolant Cooler
ᆞ Auto Door
ᆞ Linear Scale
ᆞ Touch Probe

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

[IRONMAN] in Korea EP.03 SMEC Machine Tools User:The Top

Date: 2021-04-09

MEET KOREA'S ENGINEERS
COMPANY VISITS
"SMEC
IRON MAN
SMEC Machine Tools"
TODAY IRON MAN
Jee-Hyun Lim, CEO of The Top Co., LTD

SMEC Machine Tools_MCV 5700L (Machine Tools, MCT, Machining Center)

Date: 2021-03-31

*** spec ***
MCV 5700L
LM Guideway Machining Center
12,000rpm Direct Head Type, BT40/BBT40, 30MG
Travel(X/Y/Z) 1,600/570/520 mm
Rapid traverse rate(X/Y/Z) 36/36/30
Table Size 1,700 x 570 mm

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

SMEC KOREA www.esmec.com
SMEC AMERICA www.esmecamerica.com
SMEC EUROPE www.smec-europe.com
SMEC VIETNAM www.smecvina.com.vn

SMEC Machine Tools_SM 400DH with 6-axis ROBOT Factory Automation (Tapping Center,Robot,FA)

Date: 2021-03-10

SMEC Machine Tools
Factory Automation

System of Consist 구성
- SM 400DH 2-헤드 탭핑센터 (smec)
- 6-axis robot 6축 산업용 로봇 (smec)
- Air blower 세척기 (smec)
- In/Out stocker 인/아웃스토커 (smec)
- Measuring system 측정기 (renishaw)

SMEC Machine Tools_SM 400DH with 6-axis ROBOT Factory Automation (Tapping Center,Robot,FA)

Date: 2021-03-10

SMEC Machine Tools
Factory Automation

System of Consist 구성
- SM 400DH 2-헤드 탭핑센터 (smec)
- 6-axis robot 6축 산업용 로봇 (smec)
- Air blower 세척기 (smec)
- In/Out stocker 인/아웃스토커 (smec)
- Measuring system 측정기 (renishaw)

SMEC Machine Tools X HANWHA Robotics Collaboration(Lathe,Turning center,cobot,co-robot)

Date: 2021-02-26

SMEC Machine Tools
x
HANWHA Robotics Collaboration

spec.

SMEC Machine Tools
SL 2000M
SL 2500M

HANWHA Robotics
HCR-5A

SMEC Machine Tools X HANWHA Robotics Collaboration(Lathe,Turning center,cobot,co-robot)

Date: 2021-02-26

SMEC Machine Tools
x
HANWHA Robotics Collaboration

spec.

SMEC Machine Tools
SL 2000M
SL 2500M

HANWHA Robotics
HCR-5A

SMEC Machine Tools_SM 400DH (Machine Tools, MCT, Tapping Center, Machining Center, 2-HEAD)

Date: 2021-02-22

*** spec ***
SM 400DH
2-Head Tapping Center
Fanuc : 12,000/20,000rpm
Siemens/Mitsubishi : 24,000rpm
BBT30, 20MG (10MG x 2ST)
Travel(X/Y/Z) 530/400/415 mm
Rapid traverse rate(X/Y/Z) 60/60/48
Table Size 750 x 400 mm

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

SMEC KOREA www.esmec.com
SMEC AMERICA www.esmecamerica.com
SMEC EUROPE www.esmec.com
SMEC VIETNAM www.smecvina.com.vn

SMEC Machine Tools_PCV 430 (Machine Tools, MCT, Machining CenteR)

Date: 2021-01-23

*** spec ***
PCV 430
LM Guide Machining Center
10,000rpm, Direct Head, BT40, 24MG
Travel(X/Y/Z) 700/430/5150mm
Rapid traverse rate(X/Y/Z) 48/48/36
Table Size 750 x 420 mm

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

SMEC KOREA www.esmec.com
SMEC AMERICA www.esmecamerica.com
SMEC EUROPE www.esmec.com
SMEC VIETNAM www.smecvina.com.vn

adieu~!! 2020. SMEC Machine Tools New year's card #Thank you, #Happy new year

Date: 2020-12-29

Happy Holidays from SMEC Machine Tools.

We are thankful for all of the love and encouragement that you, our viewers, have given to our channel this past year.

In this time of social distancing, we were very busy creating a variety of content this year.

And our efforts have seen our channel grow dramatically in the number of subscribers and views.

And in the future, SMEC will not sit idle, but will continue to produce better and more informative content for our viewers. We will steadily move forward and strive to present new facets of ourselves and change to meet various needs.

We wish the new year of 2021 will be filled with happiness and prosperity for your families and businesses.

We at SMEC Machine Tools promise to greet you next year in even better shape and work with you to overcome the difficulties of this time with the COVID-19.

Thank you and Happy New Year.

[IRONMAN] in Korea EP.02 SMEC Machine Tools User:SEUNGJIN ENGINEERING

Date: 2020-12-14

MEET KOREA'S ENGINEERS
COMPANY VISITS
"SMEC
IRON MAN
SMEC Machine Tools"
TODAY IRON MAN
Seung-Jae LEE, CEO of SEUNGJIN ENGINEERING Co., LTD

[Overseas] SMEC Machine Tools_LCV 6700 Product Introduce by Owen Jung(Machining Center,MCT)

Date: 2020-11-18

*** LCV 6700 ***

#6 Box Guide way Vertical Machining Center

** spec. Spindle Geared Head Type - 6,000 RPM / BT50
Direct Head Type - 8,000 RPM / BT50
- 12,000 RPM / BT40
Magazine 30MG
Travel(X/Y/Z) 1,350/670/650 mm
Table Size 1,550 x 670 mm

"Hello and welcome to SMEC Machine tools.
This is Owen Jung from SMEC.
Today, I'm going to introduce one of our high quality machines, model LCV 6700.
This machine is designed with a box guide way structure for heavy duty and precision cutting.
And it is optimized for mass production by maximizing productivity with a high speed auto tool changer being driven by an enhanced double swing arm."

"LCV 6700 has 2 different types of head unit .
The direct drive type has a coupled motor and spindle, to transfer the power and torque to tools without any loss.
To provide powerful cutting and minimize vibration, the 8000 direct drive motor has been applied.
The gear head type has powerful cutting force with a 2 step transmission structure.

"The table size is 1,550 by 670 mm
and the table can support upto 1,000 kgs of payload.
LCV 6700 has a high rigidity box guide for X, Y and Z axis .
The max travel distance for X axis is 1,350mm , Y axis is 670mm and Z axis is 650mm. "

"The head unit is designed with a jacket circulation cooling system.
Thermal displacement is minimized by Jacket circulation cooling through ""Fan Cooler"" on the bearing housing and gives stable performance to provide longer spindle life time."

"By using a direct coupling to the servo motor, it minimizes backlash when moving axis.
Wide box guideways provide excellent support for the saddle to prevent table overhang."

"It was my pleasure to introduce our LCV 6700.
Hopefully it can help you to choose the right machine.
If you have any further questions, please contact us at the following address.
And please ""like"" and ""Subscribe"" for more information on SEMC machines.

Thank you for watching. "

[IRON MAN] SMEC Machine Tools_EUROPE Season1-special episode Italy Dealer GMV_eng

Date: 2020-10-17

IRON MAN in Europe Special Episode

Partner Dealer Italy GMV

Today IRON MAN

CEO of Company GMV
VINCENZO BIFFI
MAURO ABRAMI

[IRON MAN] SMEC Machine Tools_EUROPE Season1-ep.03 Netherlands_SL 2500SY(Turning Center, Lathe)

Date: 2020-10-14

IRON MAN
Meet Europe CEO. ep.03 Netherlands

SMEC Machine Tools

Today IRON MAN

CEO of Company JEVA
KOOS VAN AMERONGEN

Thanks to.
JEVA, PARK, JUNG, SON

[IRON MAN] SMEC Machine Tools_EUROPE Season1-ep.02 Germany_SL 8500(Turning Center, Lathe)

Date: 2020-09-24

IRON MAN
Meet Europe CEO. ep.02 Germany

SMEC Machine Tools

Today IRON MAN

CEO of Company ESSER
Dominik Esser

Thanks to.
Esser, PARK, JUNG, SON

SMEC Machine Tools_MCV 5500 (Machine Tools, MCT, Machining Center)

Date: 2020-09-19

*** spec ***
MCV 5500
LM Guideway Machining Center
12,000rpm Direct Head Type, BT40/BBT40, 30MG
Travel(X/Y/Z) 1,050/550/520 mm
Rapid traverse rate(X/Y/Z) 36/36/30
Table Size 1,200 x 540 mm

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

SMEC KOREA www.esmec.com
SMEC AMERICA www.esmecamerica.com
SMEC EUROPE www.smec-europe.com
SMEC VIETNAM www.smecvina.com.vn

[IRON MAN] SMEC Machine Tools_EUROPE Season1-ep.01 Belgium_SLV 1000(Vertical Turning Center, Lathe)

Date: 2020-09-15

IRON MAN
Meet Europe CEO
ep.01 Belgium
SMEC Machine Tools
Today IRON MAN
CEO of Company ADEC
Martijn Decuypere

Thanks to.
ADEC, TECMO, PARK, JUNG, SON

[Overseas] SMEC Machine Tools_SL 2000 Product Introduce by Katie Lee (Lathe,Turning Center)

Date: 2020-09-09

*** SL 2000 ***

6~8" Box Guideway Horizontal CNC Turning Center

** spec. Chuck 6~8"
Spindle Max. 6,000(6") / 4,500(8") RPM
Turning dia. Max. 360 mm
Machining dia. Max. 540 / 520(Mill Type) mm
Travel(X/Z) 210/560 mm
Rapid travers(X/Z) 24/30 m/min
Tool stations 12(24) ea - BMT55
Tail stock Programmable MT4 std.

"Hello and welcome to SMEC machine tools. This is Katie from SMEC. Today we will take a look at one of the most popular SMEC CNC turning center called SL2000 which is already well known as powerful and precision cuttting machine.

SL2000 is commonly used in various industries such as automotive, aerospace, aluminum cutting so on. Let us look at the machine closely."
"(Exterior)
The Spindle motor is 15 to 18.5 Kw and the Speed 4,500 to 6,000 RPM.
It's available with 6"" or 8"" chuck.
6” chuck with 61 mm spindle bore diameter
8” chuck with 76 mm spindle bore diameter.
The Maximum turning length is 540mm "
SL 2000 significantly reduced non cutting time by installating high speed turret with 0.15 sec indexing time. It can reduce the cycle time, improving productivities. The large diameter of curvic coupling significantly improves the clamping power and indexing precision
SL2000 has Programmable tailstock MT4 applied. It supports the machine on keeping high accuracy and rigidity in heavy duty cutting. It can be manually traversed by MPG handle also, it can be operated with M codes.

Thank you for watching this video and hope it will helpful for you to consider introducing new machine. If you need further information, please contact us. And before you go, please don't forget subscribing this channel and hit like button. Thank you.

[IRONMAN] in Korea EP.01 SMEC Machine Tools User:SPEC

Date: 2020-08-20

MEET KOREA'S ENGINEERS
COMPANY VISITS
"SMEC
IRON MAN
SMEC Machine Tools"
TODAY IRON MAN
Hee-gon Kim, CEO of SPEC

[Overseas] SMEC Machine Tools_SL 3500LM Product Introduce by JK LIm

Date: 2020-06-26

12~15" CNC Turning Center SMEC Machine Tools_
SL 3500LM Product Introduce

Hello, this is JK LIM from SMEC. Today I would like to introduce our famous SL 3500LM turning center.
This machine is available with a 12-inch or 15-inch chuck with C-axis. This machine offers high rigidity and heavy duty cutting capabilities

** STRUCTURE **
The bed is a one piece meehanite casting with heavy torque tube ribbing.
This rigid bed structure supports heavy duty cutting.

The main spindle has a symmetrical structure that minimizes thermal deformation.

** GEARBOX **
This in-house developed gearbox provides the best performance compared to our competitors

** TURRET **
The SL 3500LM is equipped with a 12 station BMT65 turret, capable of supporting live tooling at every station.
Providing flexible machining through various machining operations with just one set-up.
Each tool holder is securely fastened with 4 screws, allowing the turret to perform heavy-duty turning, milling and drilling operations.
Turret index is non-stop, bi-directional with a fast 0.25 second next station indexing time.

** GUIDEWAY **
The SL 3500 series is a box-guideway machine.
With hand-scraped turcite allowing fast and smooth travel.
The box-guideway supports better stability, ensuring better machining quality compared to LM Guideway machines.

Anyways, I hope you enjoyed our introduction for the SL 3500LM.
And if you have any further questions, please contact us at SMEC.
Please subscribe and like this video.

Thank you.

SMEC Machine Tools_SL 8500 series (Machine Tools, CNC, Lathe, Turning Center)

Date: 2020-05-28

32" Horizontal Turning Center, Box Guide Type
Swing over bed 1,030mm / Swing over cross slide 800mm
X-axis travel 470mm
Z-axis travel 1,050/2,050/3,270/5,100mm
O.D Cutting, I.D Cutting, Thread Cutting

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnership in 1991 ***

KOREA : www.esmec.com
U.S.A : www.esmecamerica.com

SMEC Machine Tools_PL 1600 series (Machine Tools, CNC, Lathe, Turning Center)

Date: 2019-12-10

6~8" Horizontal Turning Center
X-Axis Box Guide Type / Z-Axis LM Guide Type
Swing over bed 530mm / Swing over cross slide 290mm
O.D, Grooving, Finish, Endmill, U-Drill, I.D, Drill, Tapping cutting


*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

KOREA : www.esmec.com
U.S.A : www.esmecamerica.com

SMEC Machine Tools_EMO 2019 (ENG ver.)

Date: 2019-11-17

EMO 2019 show
MCT 2ea, LATHE 11ea, IIOT solution

SMEC Machine Tools_SL 3500Y series (Machine Tools, CNC, Lathe, Turning Center)

Date: 2019-10-24

12~15" Horizontal Y-axis Turning Center
Box Guide Way Type, Max machining length SL 3500Y 780mm /
SL 3500LY 2,125mm

O.D Cutting, U-Drill, End Mill Cutting

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

KOREA : www.esmec.com
U.S.A : www.esmecamerica.com

SMEC Machine Tools_SL 3000 series (Machine Tools, CNC, Lathe, Turning Center)

Date: 2019-10-24

10~12" Horizontal Turnung Center
Box Guide Type, Max machining length SL 3000 555mm / SL 3000X 835mm / SL 3000L 1,055mm

O.D Cutting, Groving, Finishing, Thread Cutting, Drill Cutting, Tap Cutting

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

KOREA : www.esmec.com
U.S.A : www.esmecamerica.com

SMEC Machine Tools_SL 2500 series (Machine Tools, CNC, Lathe, Turning Center)

Date: 2019-10-24

8~10" Horizontal Turning Center
Box Guide Type, Max machining length SL 2500 555mm / SL 2500X 835mm / SL 2500L 1,055mm

O.D Cutting, U-Drill, I.D Cutting, Drill, End mill, Tap Cutting, Chamfer Cutting

*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

KOREA : www.esmec.com
U.S.A : www.esmecamerica.com

SMEC SIMTOS 2018

Date: 2018-10-10

SIMTOS 2018
(The 18th Seoul International Manufacturing Technology Show)
2018.04.03 - 04.07


*** SMEC CO., LTD(SMEC Machine Tools) started as the machine tools division of Samsung Heavy Industries(branded as Samsung Machine tools) in 1988 ***
*** Mori Seiki and SMEC Machine Tools(former Samsung Machine Tools) formed a technology partnetship in 1991 ***

KOREA : www.esmec.com
U.S.A : www.esmecamerica.com
